Renovation with Metl-Span® panels gives school more modern look
Profile variety helps achieve consistent appearance, under budget
LEWISVILLE, Texas (August 12, 2014) – Insulated metal panels, in a variety of Metl-Span® profiles, were able to satisfy the architectural desires for aesthetics, while meeting the budgetary constraints of the Danvers High School renovation project.

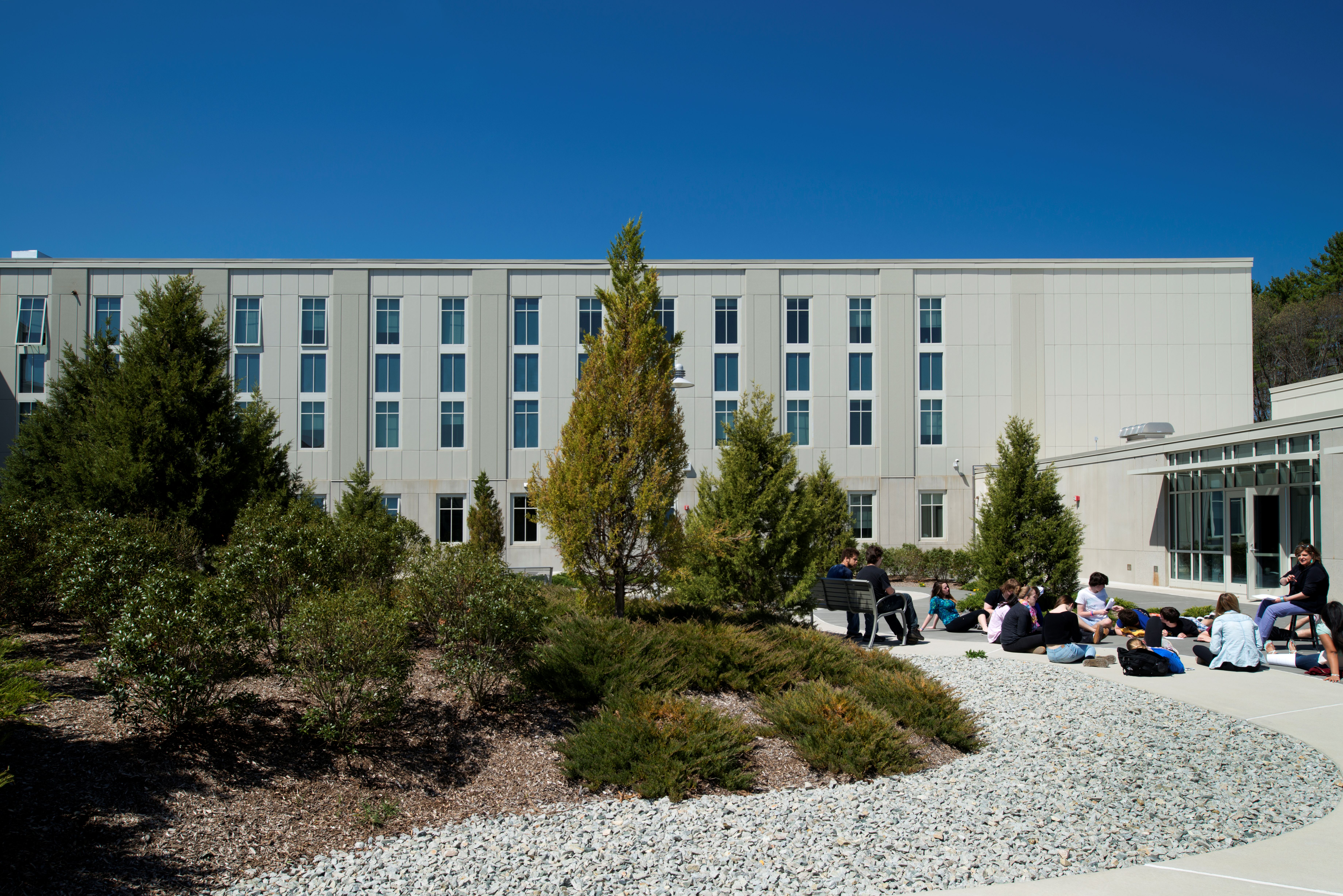

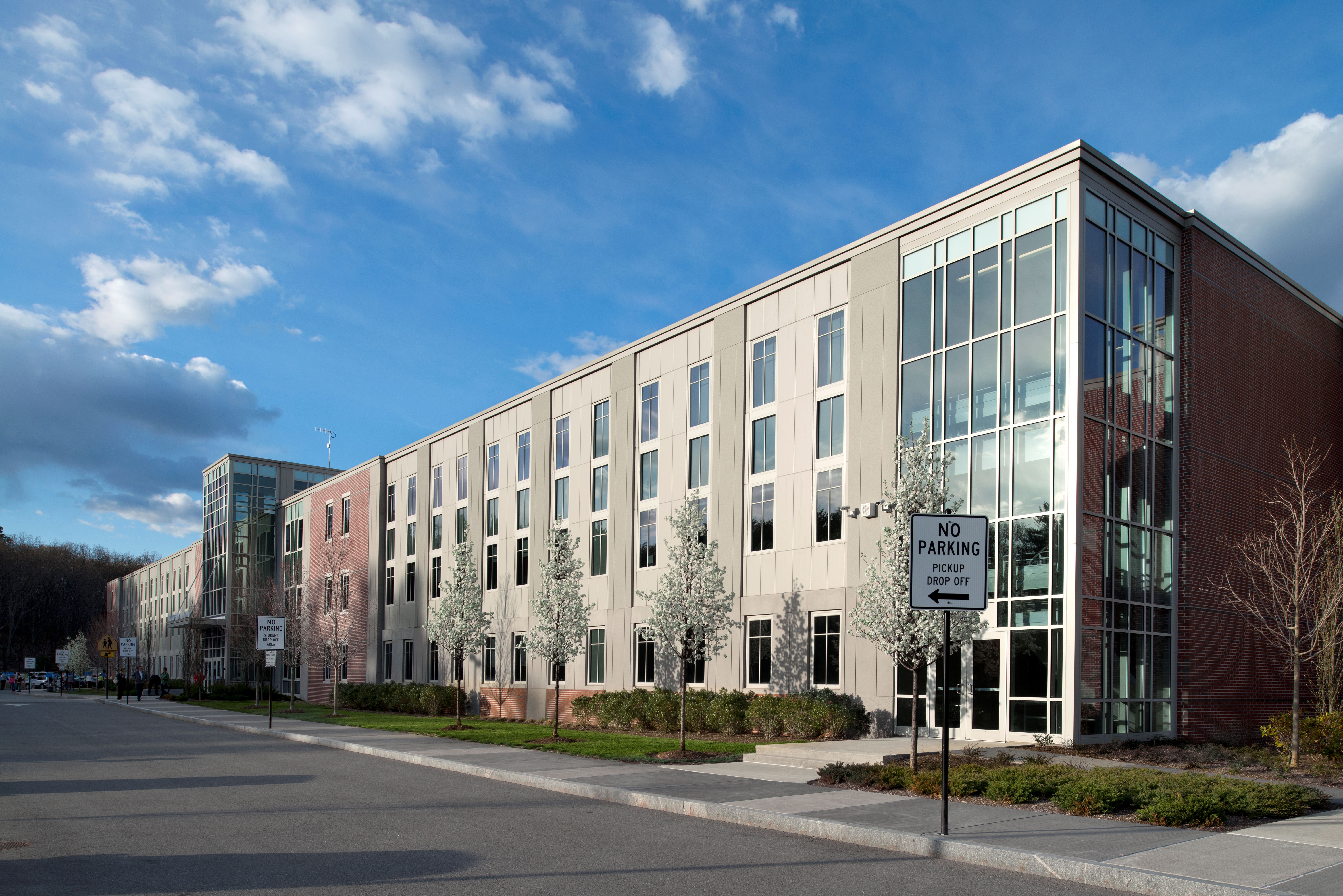

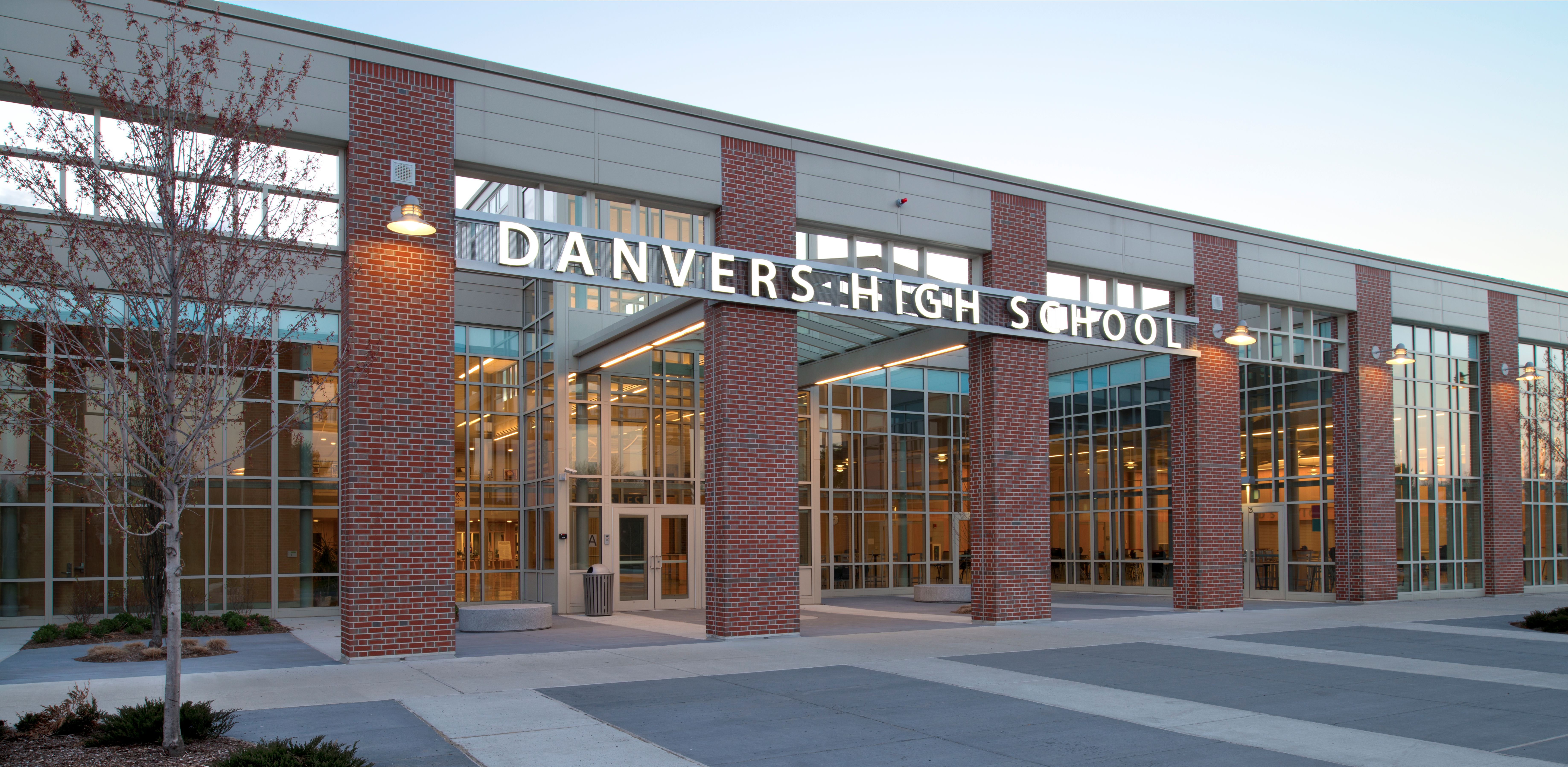

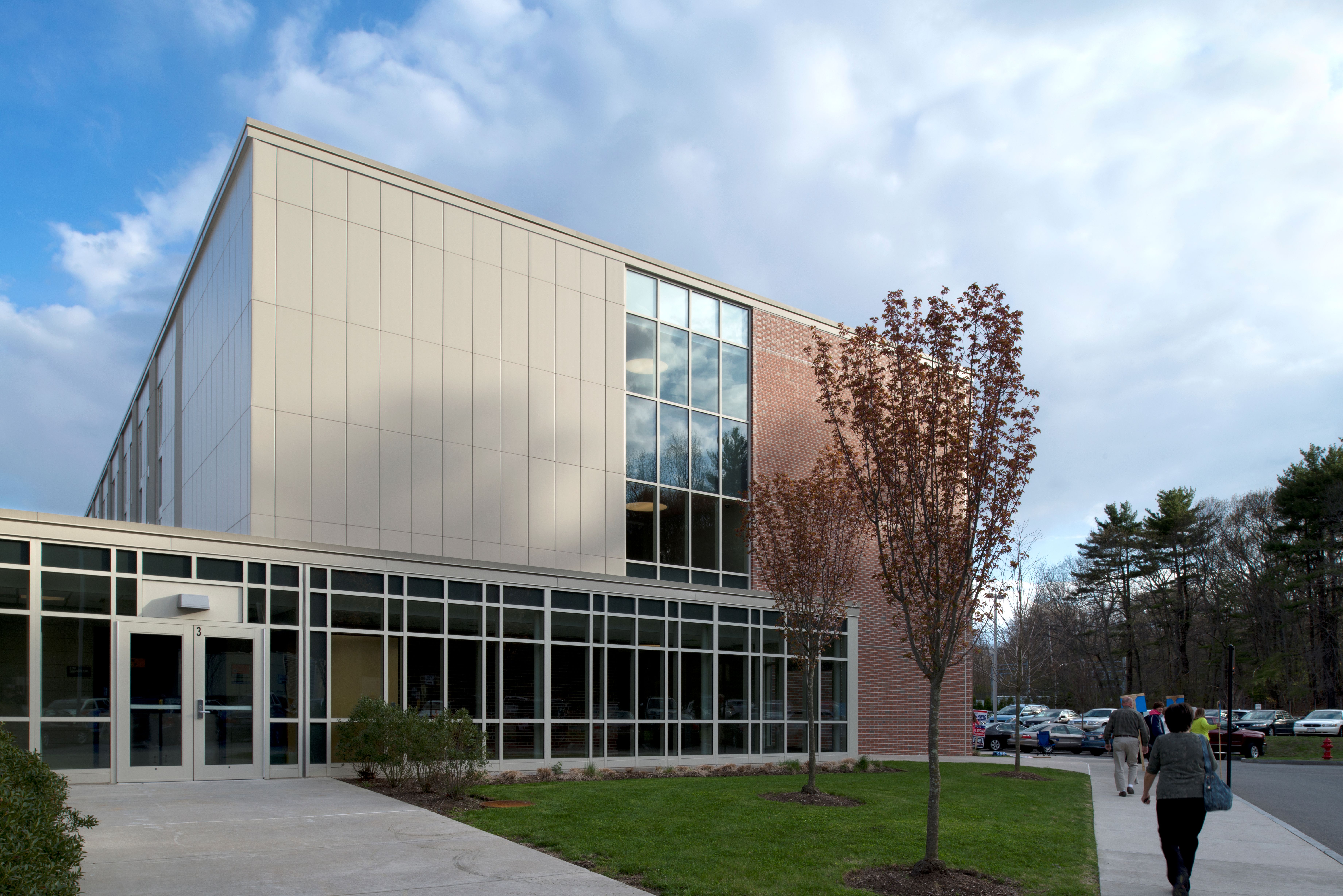

The Danvers High School, Danvers, Mass., project included building a new three-story academic wing, entrance, cafeteria and library, with renovations to the field house and auditorium.

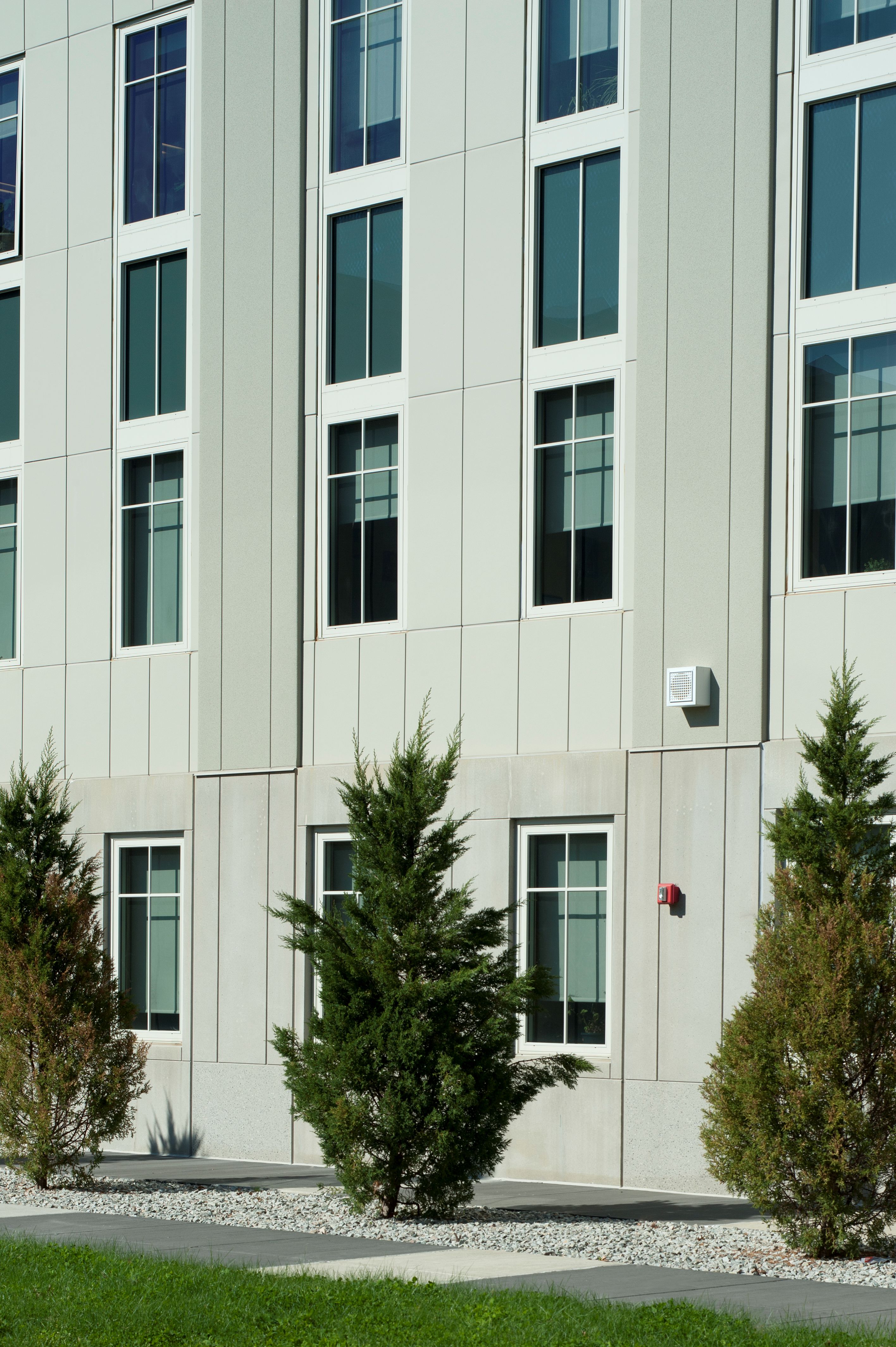

“Portions of the Danvers High School project were renovations with some new additions,” said James Shuttleworth, AIA, project architect and CAD manager at DiNisco Design Partnership of Boston. “A major material for the project was insulated precast concrete panels installed as a new ‘skin’ of the existing building at the first floor level. The metal panels were used to carry the color and feel of the precast to the second and third floors of the existing building, where (installing) precast concrete would have been more costly.”

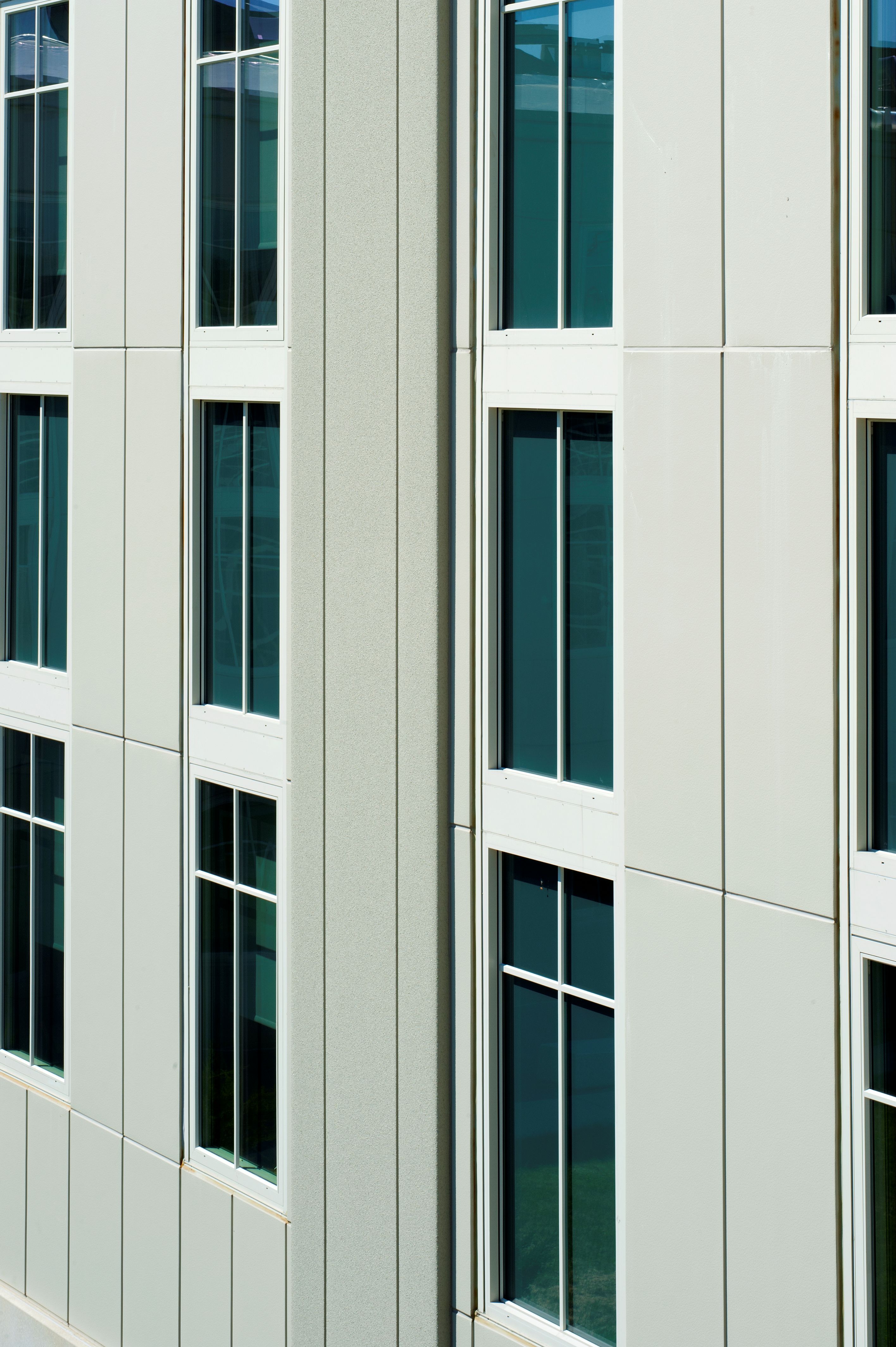

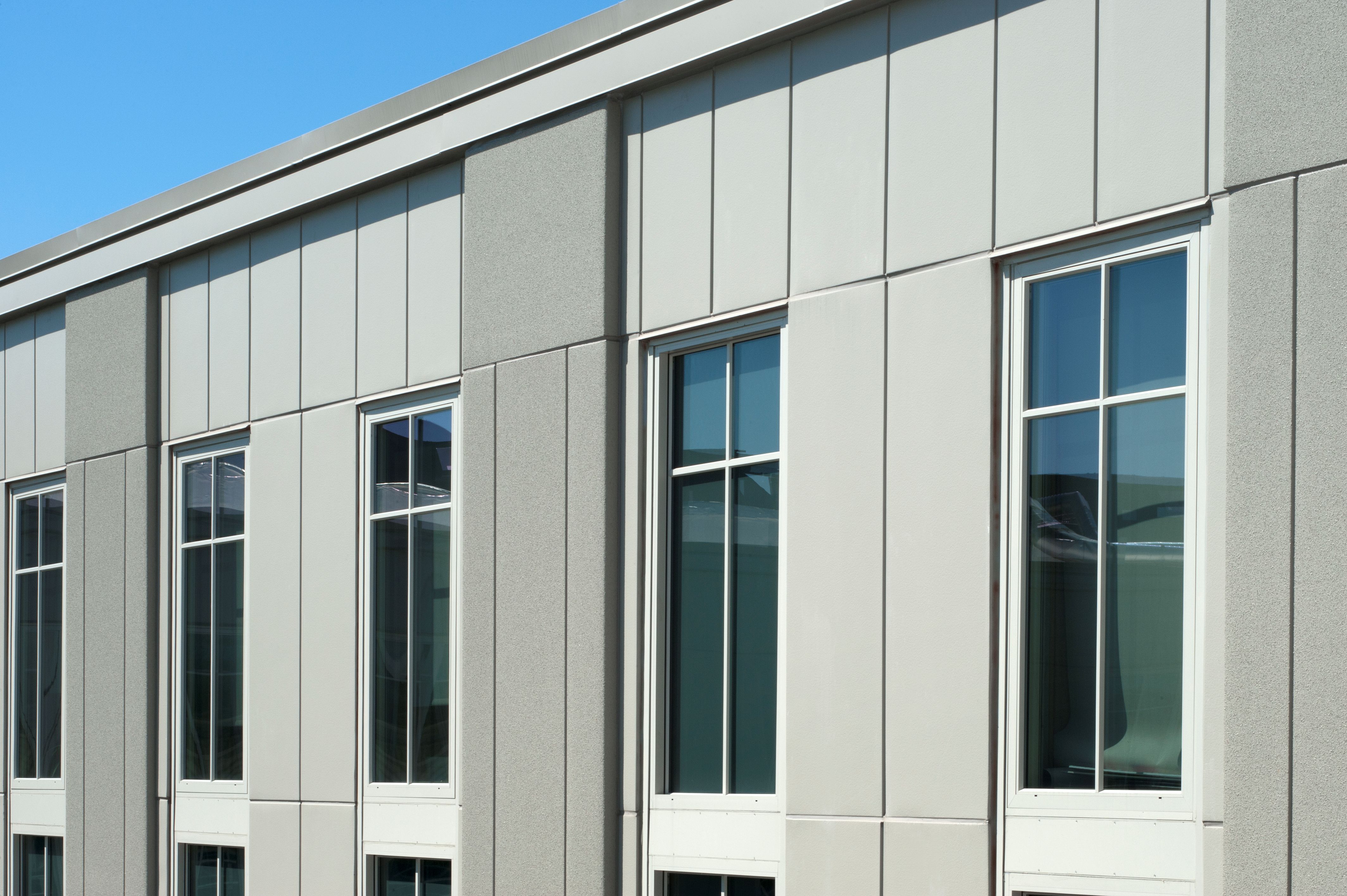

Shuttleworth said the Metl-Span insulated panels were used to clad the existing brick building with a number of finishes, including smooth, embossed and Tuff-cast™, to closely match the finish and color of the precast concrete panels. The bid on the project was 11 percent lower than the original estimate, according to school officials.
The specs called for four different sizes of Metl-Span’s CFA 3-inch smooth panels – 13-inch, 24-inch, 25-3/4-inch and 28-1/4-inch, as well as six different sizes of the CFA 3-inch embossed panels – 20-3/4-inch, 22-3/4-inch, 24-inch, 24-1/4-inch, 25-3/4-inch and 28-1/4-inch. All had to be custom sized with trimless ends.
“We had to make a lot of custom panels in the field,” said Graham Spates of Bass Associates of Lynn, Mass. “The project was just a couple towns down the road from our shop so we were constantly managing the project. By communicating with the architect and the general contractor, Bacon Construction, we were able to stay on top of the job.”
Spates says insulated metal panels were chosen for the Danvers High School two-phase renovation because Metl-Span could provide a solution for air vapor barrier and insulation with a single insulated metal panel product.
Metl-Span pioneered many of the developments of insulated metal panels and continues to make significant contributions to design innovations and technology that shape industry standards. For more information on Metl-Span products, call 877-585-9969 or visit www.metlspan.com.
